Description

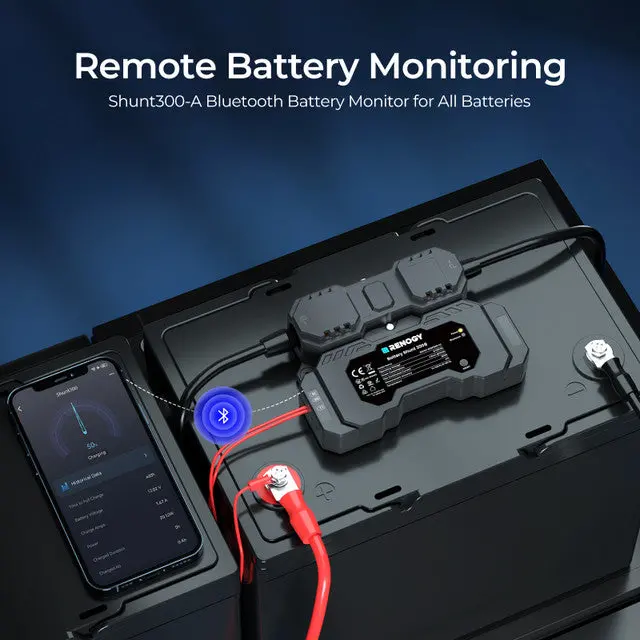

Effortlessly monitor and control your Renogy ONE/DC Home App with remote access. This device is compatible with multiple types of batteries such as Lead Acid, LFP, Li-ion, and Ni-MH. It accurately displays the State of Charge, temperature, and starter battery voltage. Keep track of historical data and receive alerts through the DC Home app for maximum efficiency and convenience.
Check Your Battery Charging Level Anytime Anywhere
Provides accurate battery monitoring through the use of the Renogy ONE Core and DC Home App.
Track Battery Data Performance Over Time.
The Shunt 300 is designed to accurately record historical data through Renogy ONE Core and DC Home App, providing valuable insights and monitoring capabilities.
Compatible With All Types of Batteries
The Renogy 300A Battery Shunt with Bluetooth is universally compatible with both starter and main batteries.
Certified Performance
The Shunt 300 has undergone rigorous testing, exceeding industry standards for excellence.
Battery Temperature Sensor
The included temperature sensor allows for detection of battery temperature.
Effortless Installation in 5 Minutes
Easily mountable on top of a battery or securely on a wall using screws, this battery shunt features connection points with protective covers to prevent loosening caused by movement.
Fast Connection in 4 Steps
When used in conjunction with Renogy ONE Core and DC Home, the Shunt 300 offers a seamless experience of real-time data display.
Quick Setup Involves Simple Operations to Get Started
The initial setup process is user-friendly and uncomplicated, allowing for easy and efficient use by all users.
ELECTRICAL DATA
Product Name: Smart Shunt 300
Model Name: RSHST-B02P300-G1
Power Supply: 8 – 120 VDC
Power Consumption: <0.1 W
Communication: Bluetooth LE and BLE Mesh
Max continuous current: 300A
Max peak current: 500A(<10s)
Current accuracy: ±1%
Current Resolution: 0.01 A
Battery Capacity: 1 – 6500Ah
Voltage Input Range: 8 – 60V
Voltage input resolution: 10 mV
Temperature sensor range: -20~80℃
Temperature sensor accuracy: ±1%
Operating Temperature: -4℉~122℉(-20 ℃ to 50 ℃)
Operating Humidity: 0% to 95% RH
Operating Altitude: Less than 2000m above sea level
Installation: mounted on the wall
Battery connection: M10 bolts
Weight: 0.57lb (260g )
Dimensions: 5.27 x 3.82 x 1.22 inch (134 x 97 x 31 mm)
Warranty: 1 year
Certifications: CE, FCC ID,IC ID,RCM,TSCA, RoHS,UN38.3,TELEC
