Description

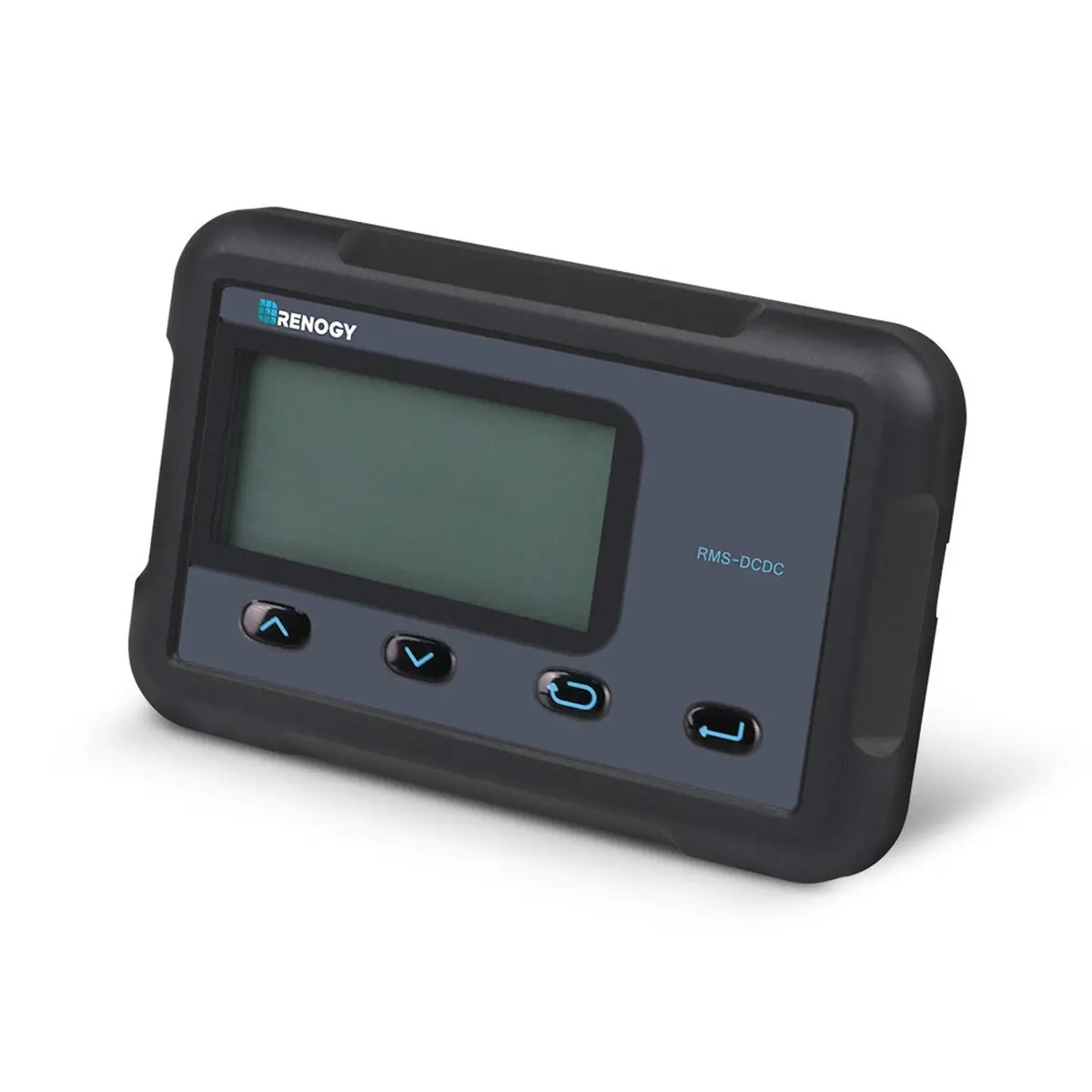

The RMS-DCDC is a highly precise device developed specifically for DC-DC MPPT Series onboard battery chargers.With its sleek design and flush-mount capability, this meter provides a professional appearance once installed. Featuring a backlit LCD and a 4-key input, users can easily navigate through the system information, adjust charging settings, and identify any error codes.The RMS-DCDC is an invaluable tool for monitoring a 2-battery system and staying informed on crucial system data.
Key Features
• Dual Battery Monitoring
- Easily keep track of your house and auxiliary battery’s charging status, while also monitoring the overall health of your solar system for informed decisions.
• Adjustable Parameters
- Configure your charging settings, voltage, and amperage quickly and easily using the monitoring screen.
• Plug and Play
- Effortlessly connect your DC-DC to an RJ45 and allow the screen to handle all other tasks.
• Accurate Readings
- Accurate tracking and monitoring guarantee up-to-date, real-time data on solar and alternator charging for optimal efficiency.
Compatible Models: RBC50D1S RBC30D1S
Package Includes
|
Monitoring Screen for DC-DC MPPT Battery Charger Series
1 x |
Specification
| Electrical Specifications | Mechanical Specifications |
|---|---|
| Supply Voltage: 5VDC | Communication Port: RJ45 (RS485 Protocol) |
| Supply Current: 30mA | Display: Backlit LCD |
| Power Consumption: <1W | User Interface: 4 Front Menu Buttons |
| Operating Temperature Range: -4°F~113°F / -20°C~45°C | Mounting System: Wall Mount |
| Voltage Accuracy: ±0.1V | Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm |
| Current Accuracy: ±0.1A | Weight: 0.14 lbs / 62 g |
| Wire Length: 16.4ft / 5m |
Warranty Information
| Accessories | 1-year material warranty |
