Description

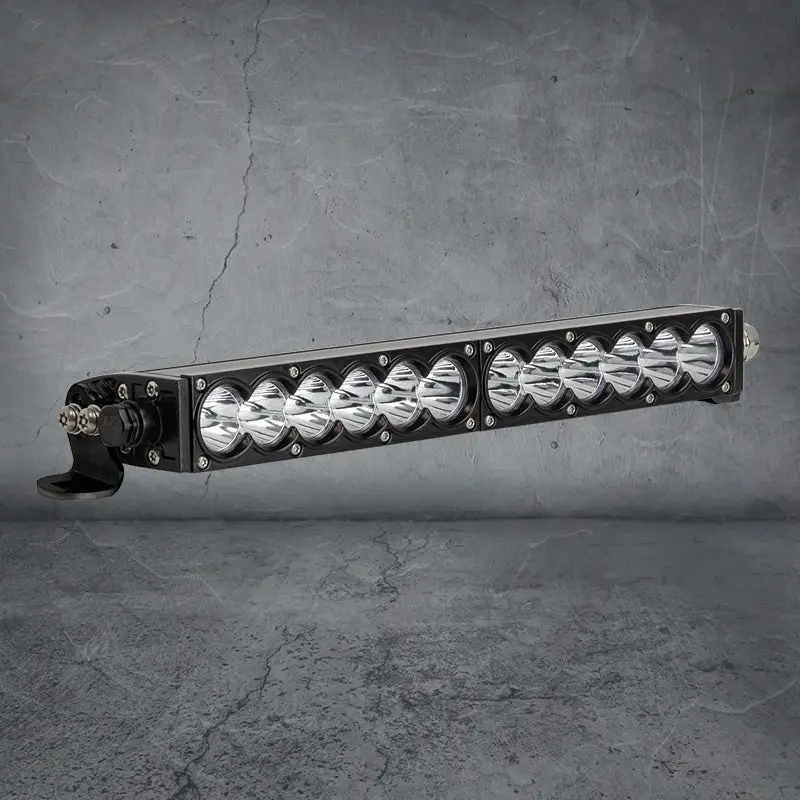

14.5-inch LED Light Bar
Constructed from durable and lightweight high pressure extruded aluminum, the RAPTOR LED Light Bars boast exceptional strength and toughness thanks to the addition of a high impact polycarbonate lens. The open-optic reflector provides a combination beam with a wide peripheral width of 100° for maximum distance.
To ensure optimal driver comfort, these light bars are offered in 4000k or 5700k Colour Temperature options. Each RAPTOR lamp is equipped with stainless steel pivot mounting brackets and fixings, and is backed by a 3-year warranty for complete peace of mind.
Manufactured in Australia, these light bars are a top choice for any industry expert.
Beam Pattern
| 60W Raptor Light Bar Specifications | |
|---|---|
| Wattage | 60 Watts |
| Light Source | 12 x 5w LED’s |
| Light Output – Raw | 7,200 Lumens |
| Light Output – Effective | 6,088 Lumens |
| Voltage | 9-36V |
| Current Draw | 4.5A @ 13.5V |
| Operating Temperature | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plug | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Colour Temperature | 4000K or 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 367 x 45 x 73mm |
| Net Weight | 1.3kg |
| Mounting Suitable | Side Mounts |
| Beam Type | Spread or Combo |
| Warranty | 3 Years |
| Harness | Harness not included, purchased separately. Harness to suit: DV12H |
