Description

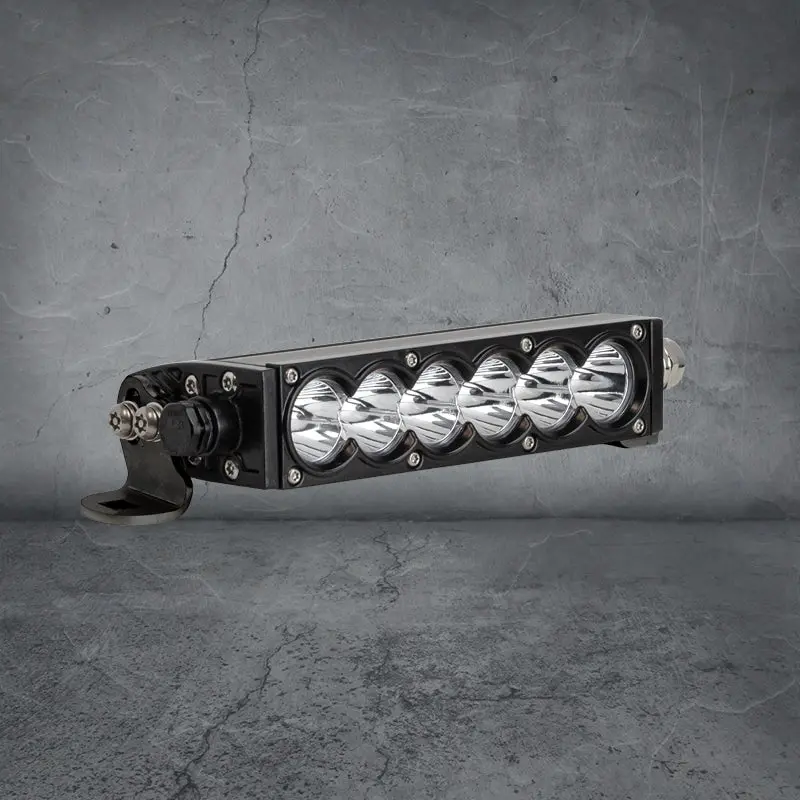

8.5-inch LED Light Bar
The RAPTOR LED Light Bars are crafted from high pressure extruded aluminum, producing a durable yet lightweight body. The combination of a high impact polycarbonate lens and Raptor light bars results in exceptional durability. The advanced open-optic reflector creates a dual beam that effectively covers long distances while providing a wide peripheral span of 100° from a single lamp type.
Experience maximum driver comfort with a variety of available 4000k or 5700k Colour Temperature options for our light bars. Each RAPTOR lamp includes durable stainless steel pivot mounting brackets and fixings. Made in Australia with a 3-year warranty, you can trust in our products for total peace of mind.
Beam Pattern
| 30W Raptor Light Bar Specifications | |
|---|---|
| Wattage | 30 Watts |
| Light Source | 6 x 5w LEDs |
| Light Output – Raw | 3,600 Lumens |
| Light Output – Effective | 2,895 Lumens |
| Voltage | 9-36V |
| Current Draw | 2.2A @ 13.5 |
| Operating Temperature | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plugs | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Outer Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Colour Temperature | 4000K or 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 213 x 45 x 73mm |
| Net Weight | 640g |
| Mounting Suitable | Side Mount |
| Beam Type | Spread or Combo |
| Warranty | 3 Years |
| Harness | Harness not included, purchased separately. Harness to suit: DV12H |
| Part Number | |
| Combo, 5700K | RAP030LBv2 |
| Spread, 5700K | RAP030LBSv2 |
| Combo, 4000K | RAP030LB4v2 |
| Spread, 4000K | RAP030LB4Sv2 |
