Description

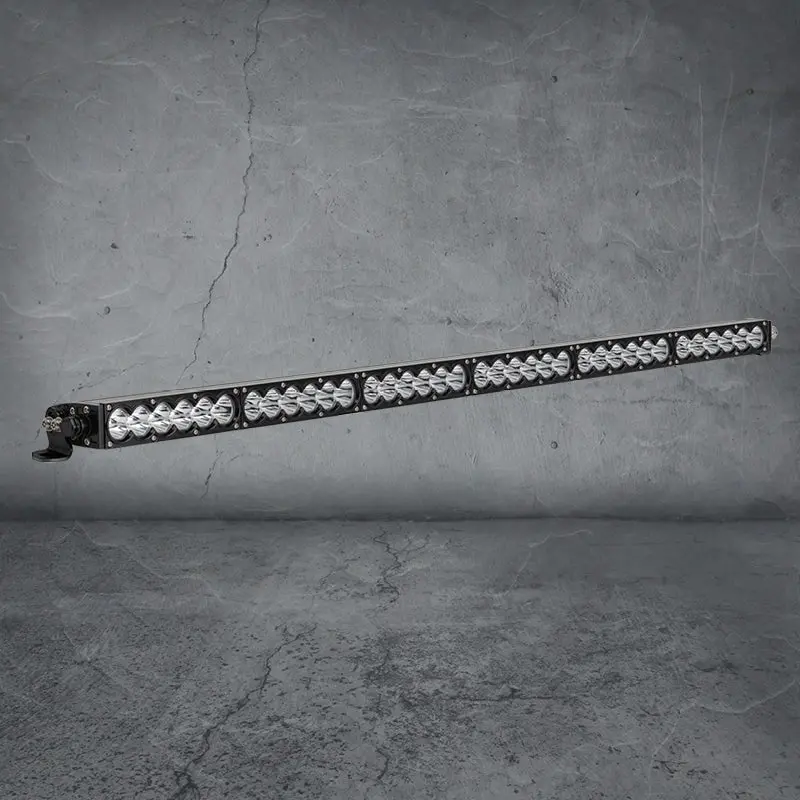

120W LED Light Bar
Crafted from high pressure extruded aluminium, the RAPTOR LED Light Bars boast a sturdy yet lightweight design. Not only that, but the high impact polycarbonate lens adds even more durability to these rugged light bars.
With a unique open-optic reflector, the Raptor provides an impressive combination beam that offers exceptional distance and a wide peripheral range of over 100°. Plus, you can choose between 4000k or 5700k Colour Temperature to suit your driving needs. Included with the Raptor 180 light bar are stainless steel pivot mounting brackets, fixings, and a 3-meter lead for easy installation on roof rack systems.
Proudly manufactured in Australia, the Raptor light bars come with a 3-year warranty for complete peace of mind. Upgrade your vehicle’s lighting with the unbeatable quality of Raptor.
Beam Pattern
Light Bar Specification
| 180W Raptor Light Bar Specifications | |
|---|---|
| Wattage | 180 Watts |
| Light Source | 36 x 5w LED’s |
| Light Output – Raw | 21,600 Lumens |
| Light Output – Effective | 17,300 Lumens |
| Voltage | 9-36V |
| Current Draw | 13A @ 13.5V |
| Operating Temperature | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plug | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Colour Temperature | 4000K or 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 991 x 45 x 73mm |
| Net Weight | 3kg |
| Mounting Suitable | Side Mounts |
| Beams Type | Combo or Spread |
| Warranty | 3 Years |
