Description
Efficiently track MPPT with up to 99% efficiency and 98% peak conversion, while automatically detecting system voltages of 12V/24V/36V/48V (non-lithium batteries). This system offers comprehensive protection and a 4-stage charging feature for safe and efficient charging, as well as diverse load control and remote monitoring.
Insulated Casing for Enhanced Safety
High-quality insulation materiales ensure maximum protection against electrical hazards, providing a secure and reliable charging solution.
Certified Protections
The Renogy Rover 60A Solar Charge Controlle features 8 electronic protections to actively monitor changes of voltage, current, and load for efficient and safe battery charging.
Stay Cool, Stay Empowered
Made of robust die-cast aluminum, the heat sink that comes with the Rover 60A Solar Charge Controller allows the heat flow away through tubes to ensure maximum charging efficiency and safety of critical components.
Charging with Precision

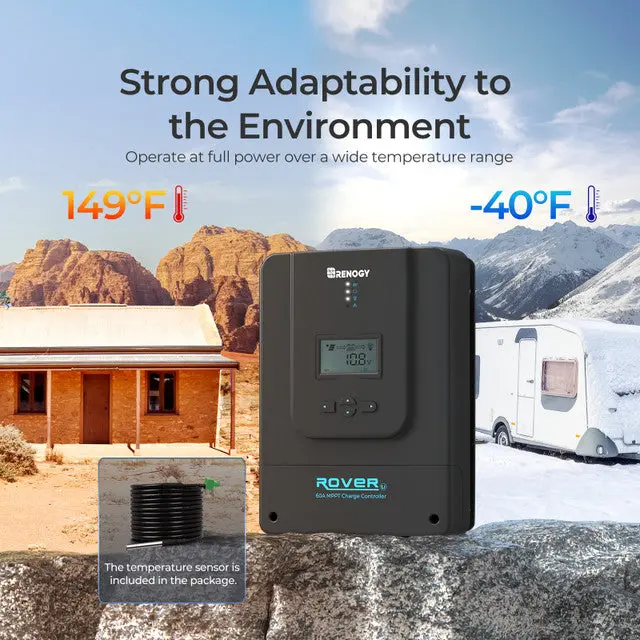

The included external temperature sensor helps Rover 60A Solar Charge Controller track the battery’s temperature all year round, avoiding under-charging in cold climates down to -40°F, and overcharging in blazing weather up to 149°F.
Package Includes
Specifications
- Nominal Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries)
- Rated Charge Current: 60A
- Rated Load Current: 20A
- Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
- Max. PV Input Voltage: 140VDC
- Self-Consumption: 0.7W-1.2W
- Operating Temperature: -31 °F to 113 °F (-35 °C to 45 °C )
- Temperature Compensation: -3mV/°C/2V (default)
- Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in)
- Weight: 7.9lbs
- Enclosure: IP32
- Terminals: 25mm2 4AWG
- Certification: CE / ROHS
- Compatible bluetooth: Renogy BT-1 Bluetooth module
