Description

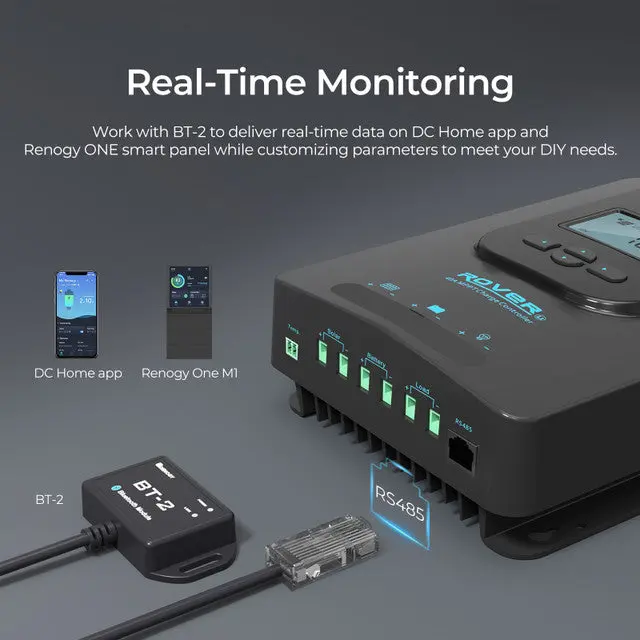

Utilizing MPPT technology, this charge controller has a tracking efficiency of up to 99% and a peak conversion efficiency of 98%. It automatically detects 12V/24V systems, making it compatible with non-lithium batteries. With comprehensive system protection and a 4-stage charging feature, it ensures safe and efficient charging. Additionally, it offers diverse load control and can be remotely monitored for convenience.
Powerful Heat Dissipation
Operates at peak performance even in extreme temperatures, ensuring your system is always running smoothly and efficiently.
Bring Dead Batteries to Life
Operates with 0 Volt batteries by sending small current to get them out of protection mode triggered by the battery management system (BMS).
Exceptional Resilience and Long-lasting Performance
Designed with materials and coatings that prevent rust and corrosion, ensuring your solar energy system is durable and reliable.
Specifications
- Nominal System Voltage: 12/24V Auto-Detect
- Rated Charge Current: 40A
- Solar Input Voltage Range (Voc): 15VDC~100VDC
- Max. PV Input Power: 12V/520W, 24V/1040W
- Power Consumption: ?100mA/12V; ?58mA/24V
- Battery Input Voltage Range: 10VDC~32VDC
- Ground Type: Negative
- Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
- Protection Level: IP32
- Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
- Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
- Operating / Storage Humidity: ? 90%, No Condensation
- Temperature Compensation: -3mV/°C/2V
- Dimensions: 238 x 172 x 77 mm;9.38 x 6.78 x 3.05 in
- Weight: 2.0kg / 4.41 lb
- Max. Terminals Size: 8 AWG 10mm2
