Description

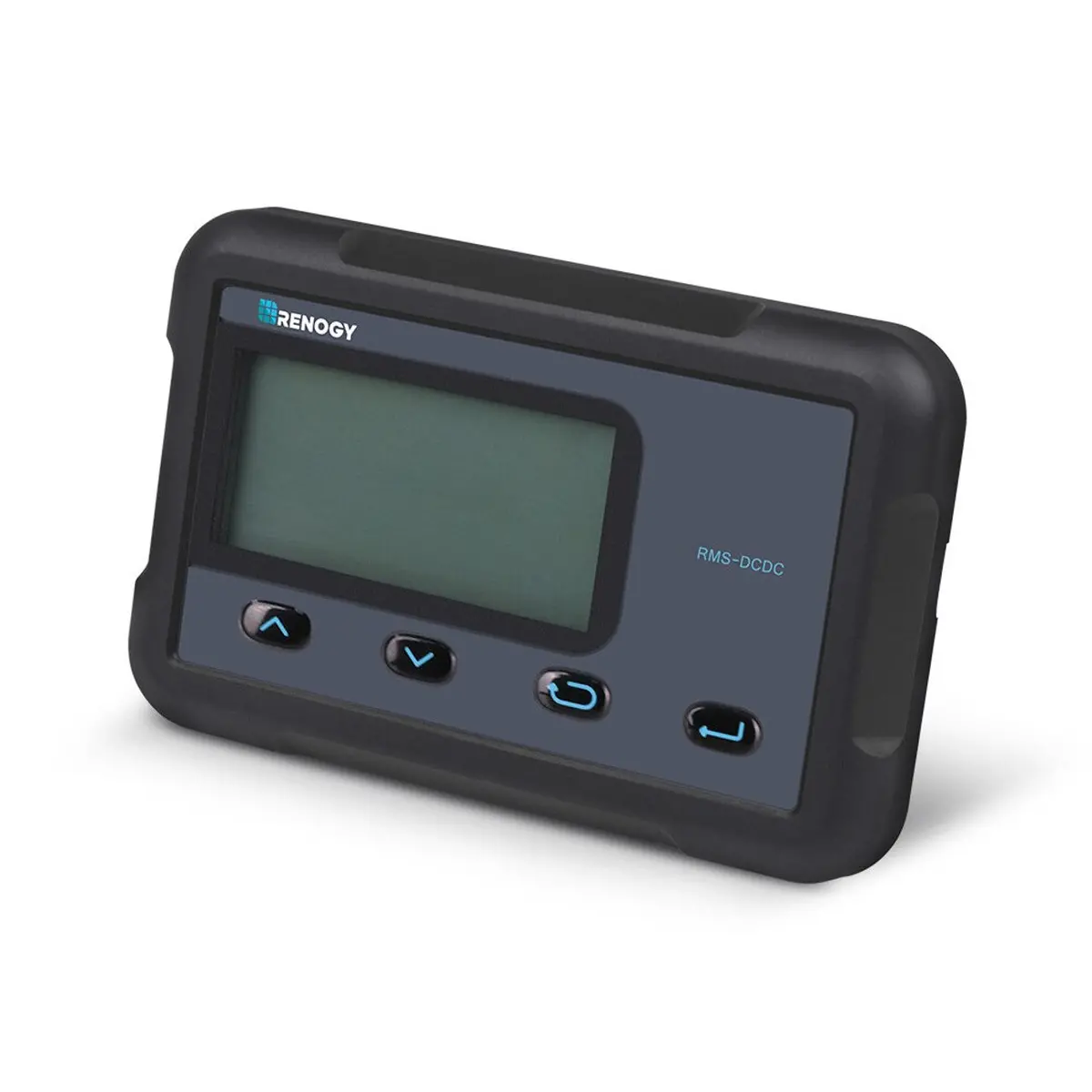

The RMS-DCDC is an accurate and advanced meter specifically designed for DC-DC MPPT Series onboard battery chargers. It boasts a sleek and polished appearance when mounted, with a backlit LCD and the ability to be seamlessly flush-mounted.
With a 4-key input, users can easily navigate the LCD to access system information, customize charging settings, and detect any potential error codes. This reliable device is an ideal companion for monitoring a 2-battery system and providing essential updates on system information.
Features
Dual Battery Monitoring
Stay informed about your house and auxiliary battery’s charging status and easily monitor the solar system’s overall health.
Adjustable Parameters
Program your charger settings, volts, and amps directly through the monitoring screen.
Plug and Play
Simply connect an RJ45 directly to your DC-DC and let the screen take care of the rest.
Accurate Readings
Precise tracking and monitoring ensure the latest real-time solar and alternator charging information.
Specifications
| Supply Voltage: 5VDC | Communication Port: RJ45 (RS485 Protocol) |
| Supply Current: 30mA | Display: Backlit LCD |
| Power Consumption: <1W | User Interface: 4 Front Menu Buttons |
| Operating Temperature Range: -4°F~113°F / -20°C~45°C | Mounting System: Wall Mount |
| Voltage Accuracy: ±0.1V | Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm |
| Current Accuracy: ±0.1A | Weight: 0.14 lbs / 62 g |
| Wire Length: 16.4ft / 5m |
