Description
The Renogy BT-2 Bluetooth module is designed for compatible Renogy solar charge controllers, DC-DC battery chargers, and smart lithium batteries. By utilizing the RJ45 communication port, the BT-2 enables wireless monitoring of system data and the ability to modify parameters through the Renogy DC Home smartphone App.
This sophisticated app empowers off-grid power systems, providing access to configuration, monitoring, updates, and diagnostics for Renogy products from a smartphone or tablet. Effortlessly connect the BT-2 to the component’s RJ45 communication port to conveniently adjust system parameters through the DC Home App, available on both the App Store and Google Play.
Features
- Precise Control Over Your Devices
Compatible with all Renogy RS485 communication port products includes the Rover Elite MPPT Solar Charge Controller, Smart Lithium Batteries, and Dual DC-DC MPPT Battery Charger. - Real-time Insight

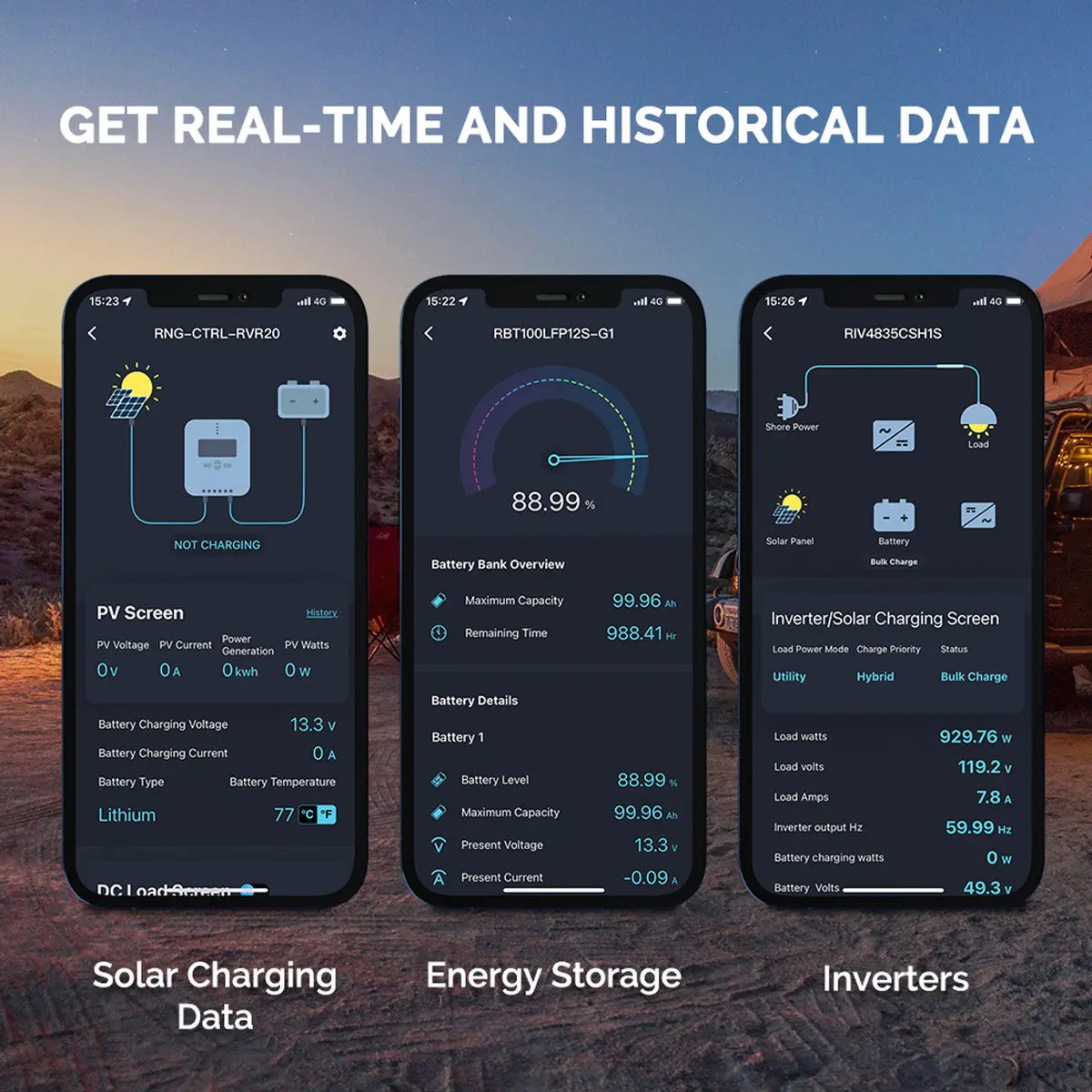

Get real-time and historical data via Bluetooth Module and Renogy DC Home App. Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication. - User-friendly
Easily connect the Bluetooth Module to the RS485 communication port, and follow the App instructions. The Bluetooth Module is powered by solar energy, and the ultra-low-power dedicated chip will allow signal range up to 82ft.
Specifications
| Communication Protocol: RS485 | Port Type: RJ45 |
| Input Voltage: 5V or 12V | Protection Grade: IP54 |
| Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
| Communication Range: ?82ft | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) |
| Installation Dimensions: 67.3 ?3.5mm?2.66 ? 0.14in? | Operation Temperature: -4°F to 185°F (-20?~85?) |
| Weight: 130g (4.58oz) |
