Description

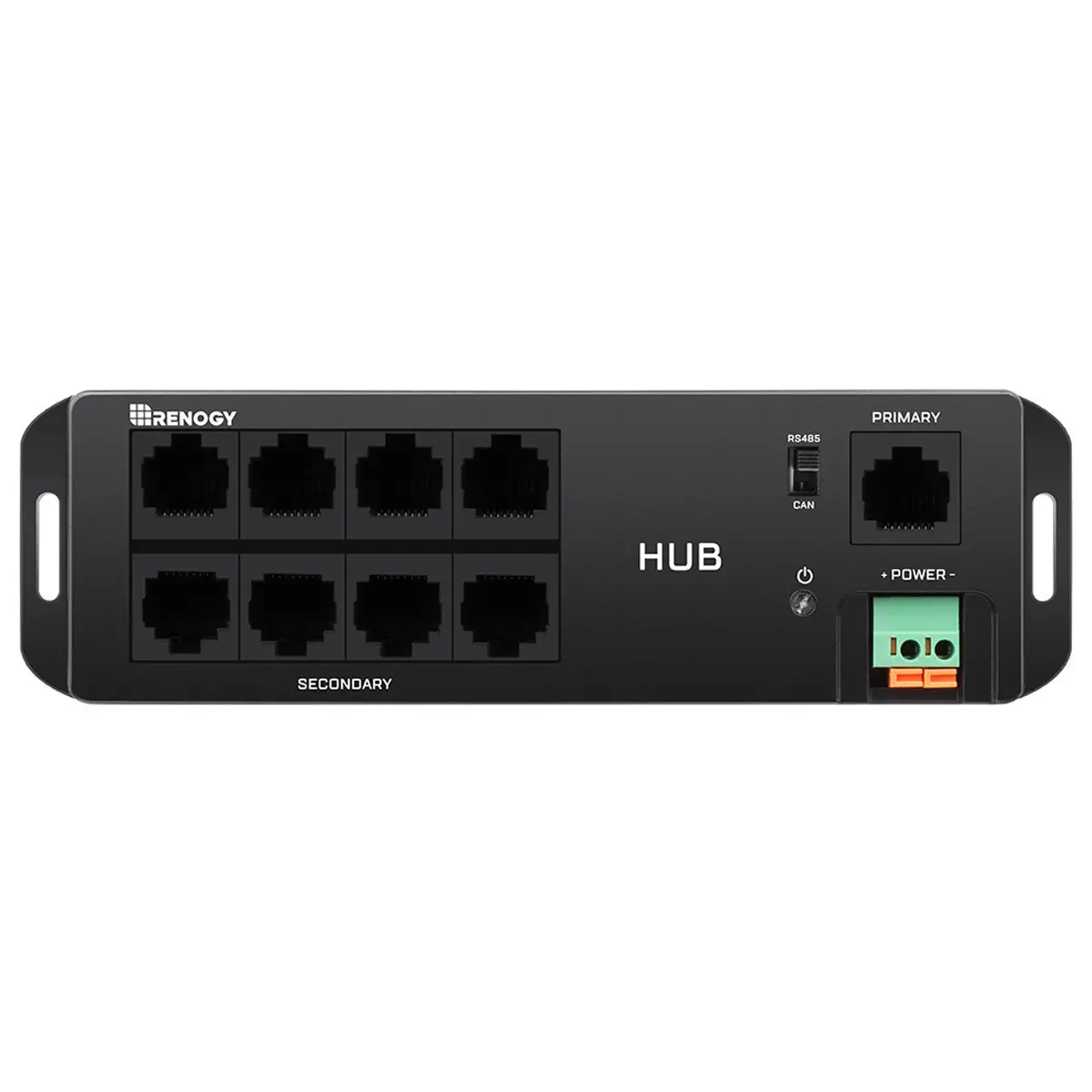

The Renogy Communication Hub enables the connection of multiple Renogy appliances using an RJ45 port and RS485 communication protocol through a single BT-2 Bluetooth module.With this feature, users can conveniently monitor multiple devices simultaneously using their phone. Additionally, the hub is compatible with a wide range of devices that support both RS485 and CAN communication protocols.It is compatible with all Renogy products that have an RJ45 port.
Key Features
- Can be used with all Renogy devices featuring an RJ45 port.
- Effortlessly monitor multiple devices simultaneously using just one Bluetooth module.
- Stay on top of your system’s performance by connecting to our intuitive smartphone App, Renogy DC Home.
- This communication hub supports both RS485 and CAN communication protocols.
- The Bluetooth Communication Hub uses green LED lights to show the currently active communication protocol.
Package Includes
|
Renogy Bluetooth Hub
1 x |
Specification
| Specifications | |
|---|---|
| Input Voltage: 9V – 60V | Standby Power Consumption: 0.324W |
| Operating Power Consumption: <0.35W | Communication Range: ≤82ft |
| Serial Baud Rate: RS485-9600 bps CAN-500 kbps | Communication Protocol: RS485 CAN |
| Port Type: RJ45 | Cable Length: 5.00 m (16.4 ft) |
| Dimensions: 6.29 X 1.89 X 0.91in (160 x 48 X 23mm) | Installation Dimensions: 151.4 φ3.5mm（5.96 φ 0.14in） |
| Operation Temperature: -20°C to 85°C (-4°F to 185°F) | Weight: 125g (4.41oz) |
Warranty Information
| Accessories | 1-year material warranty |
Certification
 |
