Description

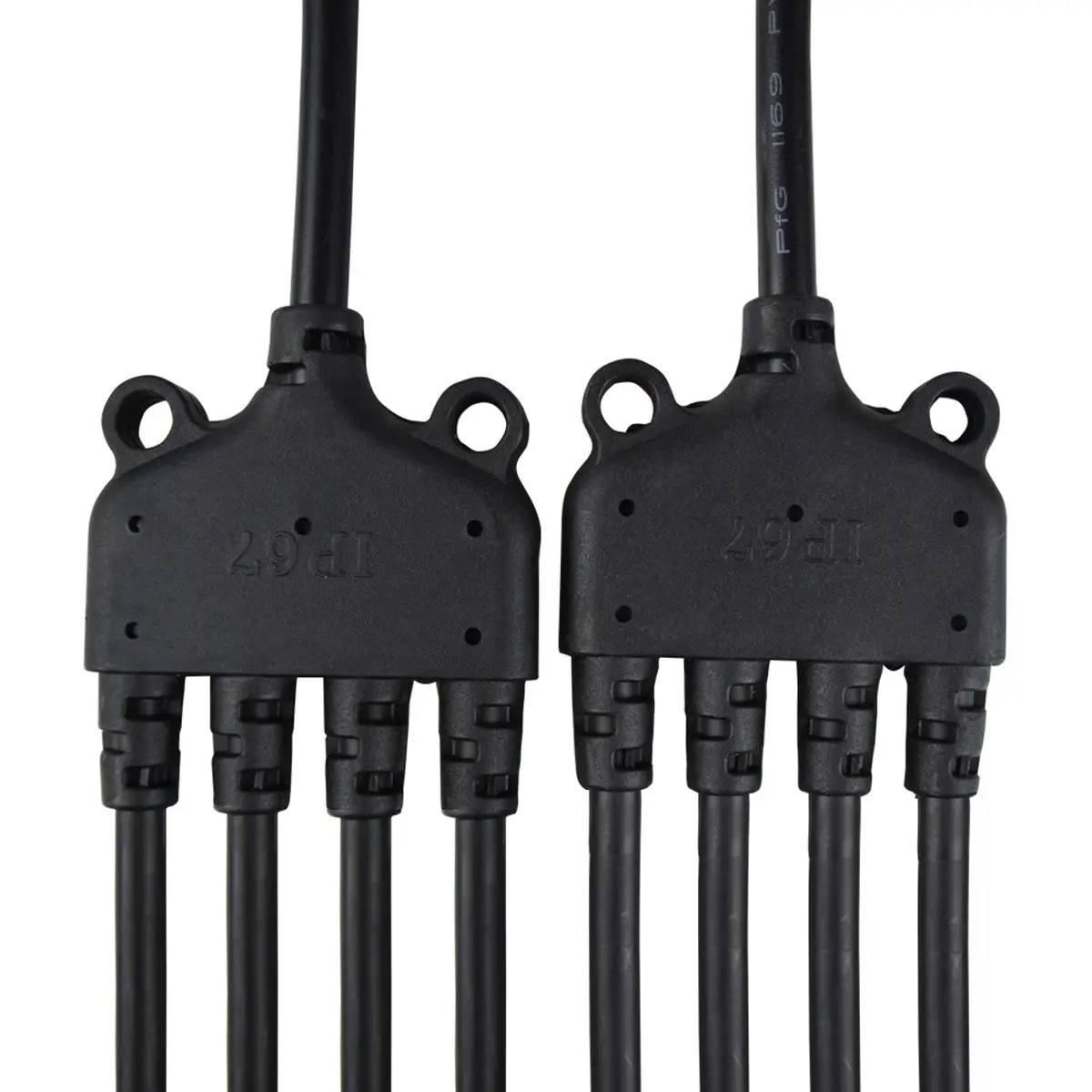

Make the installation of parallel solar panels effortless with the Renogy 4 to 1 Solar Branch Connectors MMMMF+FFFFM Pair.Designed for 400W kits, these connectors provide the flexibility to mount panels in either portrait or landscape orientations, while eliminating the clutter of excess wires. Each package includes a pair of connectors for your convenience.
Key Features
- Hard plastic
- Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
- Including one male to four female and one female to four male
Package Includes
|
4 to 1 Solar Branch Connectors MMMMF+FFFFM Pair
1 x |
Specification
| 4 to 1 Solar Branch Connectors MMMMF+FFFFM Pair | |
|---|---|
| Withstanding voltage: 1000V DC(TUV), 600V(UL) | Test Voltage: 6500V (50HZ, 5Min) |
| Wiring Size: Main: 10AWG; Branch: 12AWG | Length: Overall: 3.5ft; Branch: 1.5ft |
| Protection Degree: IP67 | Rated Current: 30A |
| Insulation Material: PC/PA | Contact Material: Copper, silver plated |
| Temperature: -40°F to +194°F |
Warranty Information
| Accessories | 1-year material warranty |
