Description
The solar wiring and mounting kit from Renogy includes everything necessary to link a 100W panel and controller to your battery bank.
Renogy’s tray cables have specialized terminal rings for battery connection and exposed wire ends for quick attachment to a charge controller. With adapter kit cables, you can connect solar panels to charge controllers using waterproof connectors and exposed wire for terminal connection.
With the Renogy Z-Bracket Mount System, installation of a single panel becomes convenient.
Key Features
Durable Design
- Renogy’s cables are TUV tested, UV light resistant and waterproof.
- Light weight aluminum brackets
Scalable Kit
- Expand system by installing more modules and /or wiring.
Flexible and Effortless PV
- Ready to connect any Renogy accessory to a 100W module or PV system.
- Easily expand your system using additional wiring or mounting brackets.
Perfect for DIY Off Grid Installation:
- Easy installation and DIY friendly.
- The kit offers all components required for Renogy’s small scale photovoltaic system installation.
- This kit allows the customer the flexibility to expand their system as needed and is built for 100W systems.
Package Includes
|
Renogy Solar Tray Cables
1 x |
Renogy Solar Adaptor Kit
1 x |
|
Renogy Solar Panel Mounting Z Bracket — Set of 4
1 x |
Specification
| Renogy 8FT 10AWG Solar Tray Cables | |
|---|---|
| Length: 8ft | AWG: 10 |
| Temperature: -40°F to +185°F | Rating Voltage: 600/1000V |

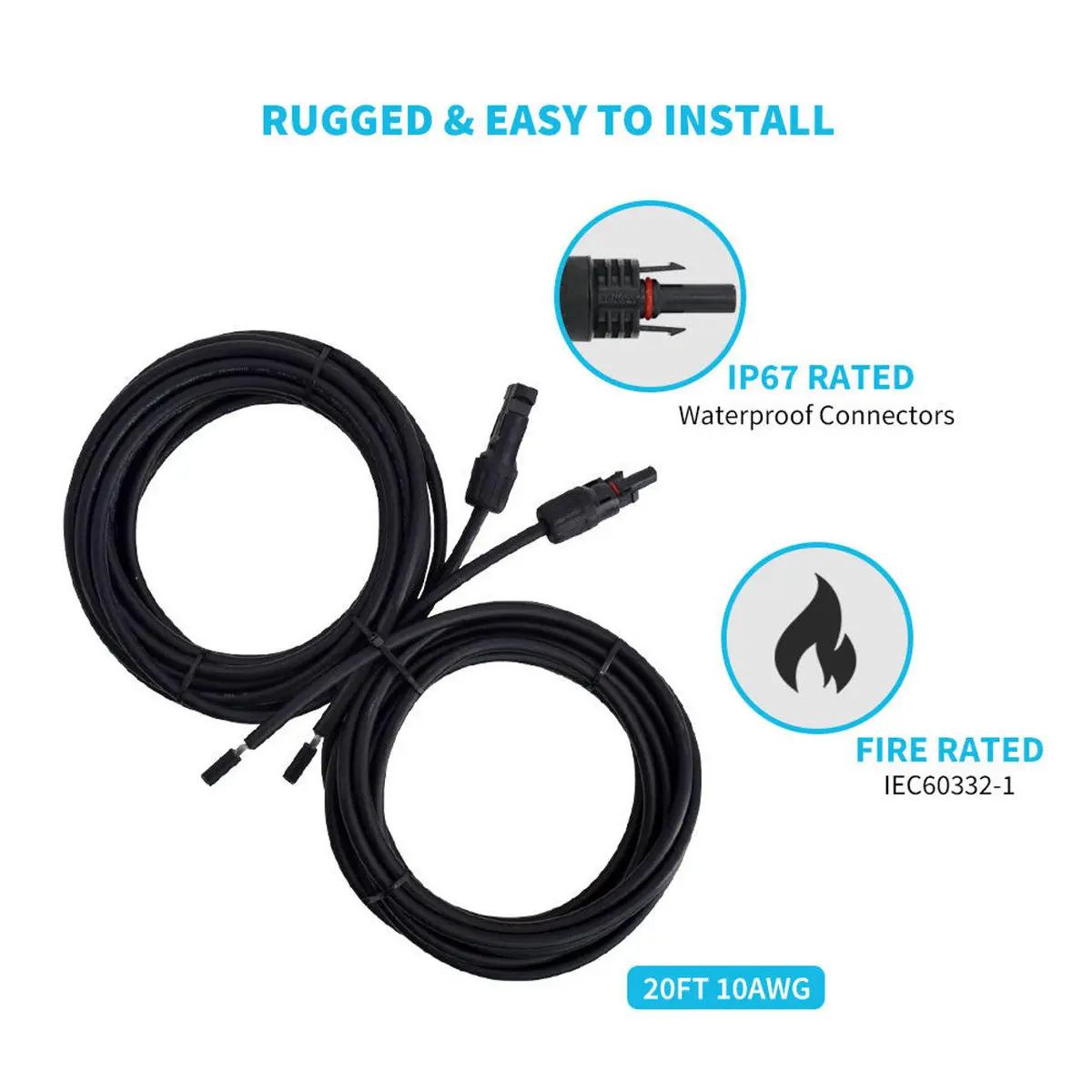

| Renogy 20FT 10AWG Solar Adaptor Kit | |
| Length: 20ft | AWG: 10 |
| Temperature: -40°F to +185°F | Rating Voltage: 600/1000V |
| Normal Cross Sectional Area of the Conductor (mm2): 6.0 | Diameter of Wires in Conductor (mm): 3.02±0.08 |
| Min. Wall Thickness of Insulation (mm): 0.85 | Min. Wall Thickness of Sheath (mm): 1.08 |
| Number of Wires in Conductor: 84 | IP 65 Protection |
| Conductor: Tinned copper wire | |
| Renogy Solar Panel Mounting Z Bracket | |
| Four Z Shape Solar Panel Brackets | Four M6-16 Hex Cap Bolt |
| Four M6 Split Lock Washer | Eight M6 Flat Washer |
| Four M6 Hexagonal Nut | Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring |
