Description
Ideal for curved surfaces, the Renogy 12Volt 100W Lightweight and Flexible Solar Panel has an impressive bending capability of up to 248°. Weighing only 4.2 lbs, it is 1/4 the weight of rigid panels, making it exceptionally portable. Measuring just 0.08 inches in thickness, it is 95% thinner than rigid panels, allowing for a discreet installation.
This solar panel can endure high wind speeds of up to 2400Pa and heavy snow loads of 5400Pa, making it a reliable choice for extreme weather conditions. Mounting options include pre-drilled holes or using silicone adhesive for a secure attachment.
Higher Efficiency

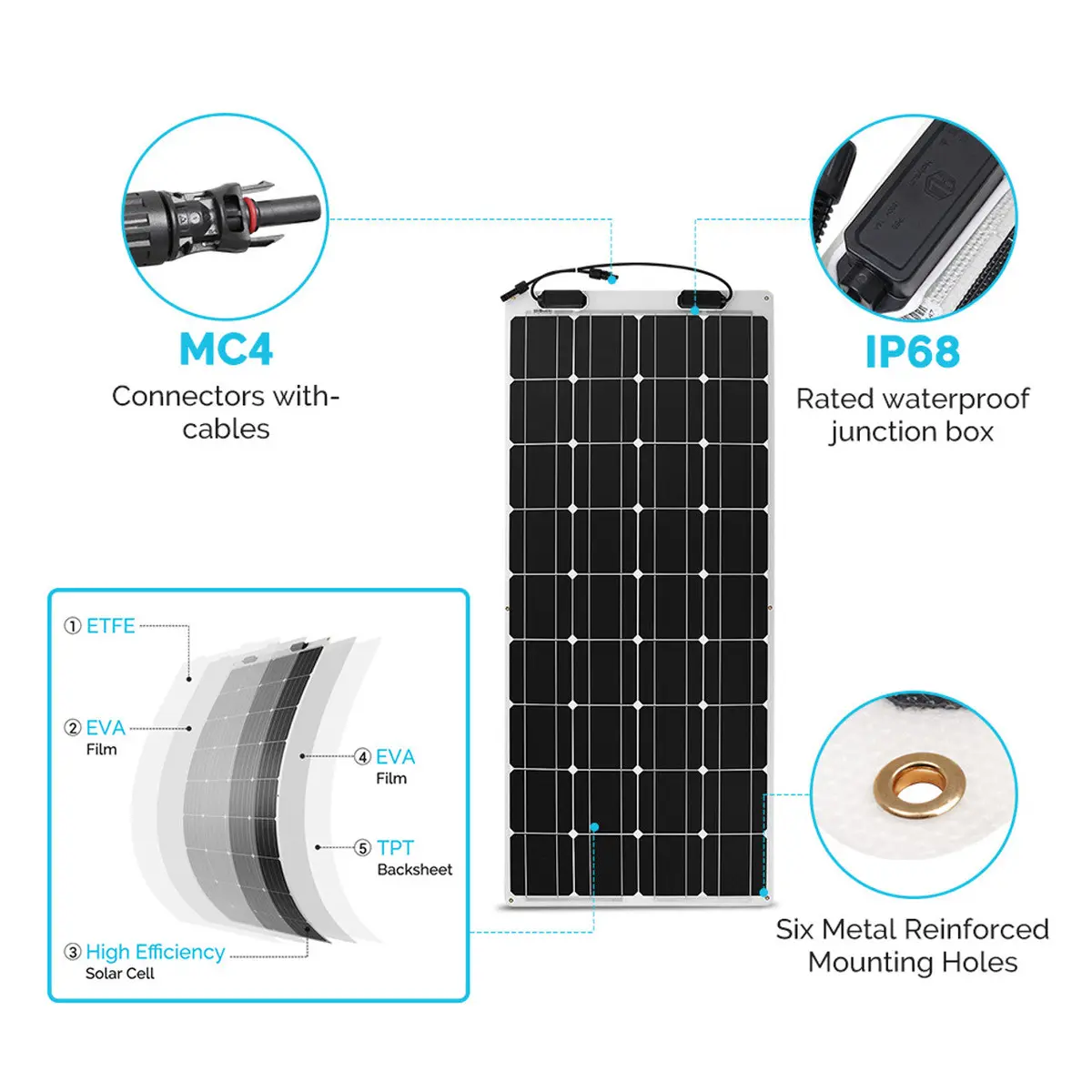

The Renogy 100W Flexible Solar Panel is anything but traditional. Perfect for marine use or placement on top of a van or vehicle with an IP68 rated waterproof junction box and IP67 rated solar connectors, the Renogy 100W Lightweight Solar Panel is ultra-thin and capable of flexing up to 248 degrees. It’s 75% lighter and 95% thinner compared to the traditional 100W rigid counterpart, making it an ideal alternative for load-sensitive structures and uneven surfaces.
Specifications
| Maximum Power at STC: 100W | Module Efficiency: 14.9% |
| Optimum Operating Voltage (Vmp): 18.9V | Open-Circuit Voltage (Voc): 22.5V |
| Optimum Operating Current (Imp): 5.29 A | Short-Circuit Current (Isc): 5.75 A |
| Operating Temperature: -40°F to 185°F (-40ºC to +85ºC) | Maximum Series Fuse Rating: 15A |
| Maximum System Voltage: 600V DC (UL) | Certifications: CE, ISO |
| Weight: 4.2 lbs (1.9 kg) | Dimensions: 48.0 x 21.6 x 0.08 in (1219 x 546 x 2 mm) |
| Material and workmanship warranty: 5 years | Performance Warranty?5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty |
