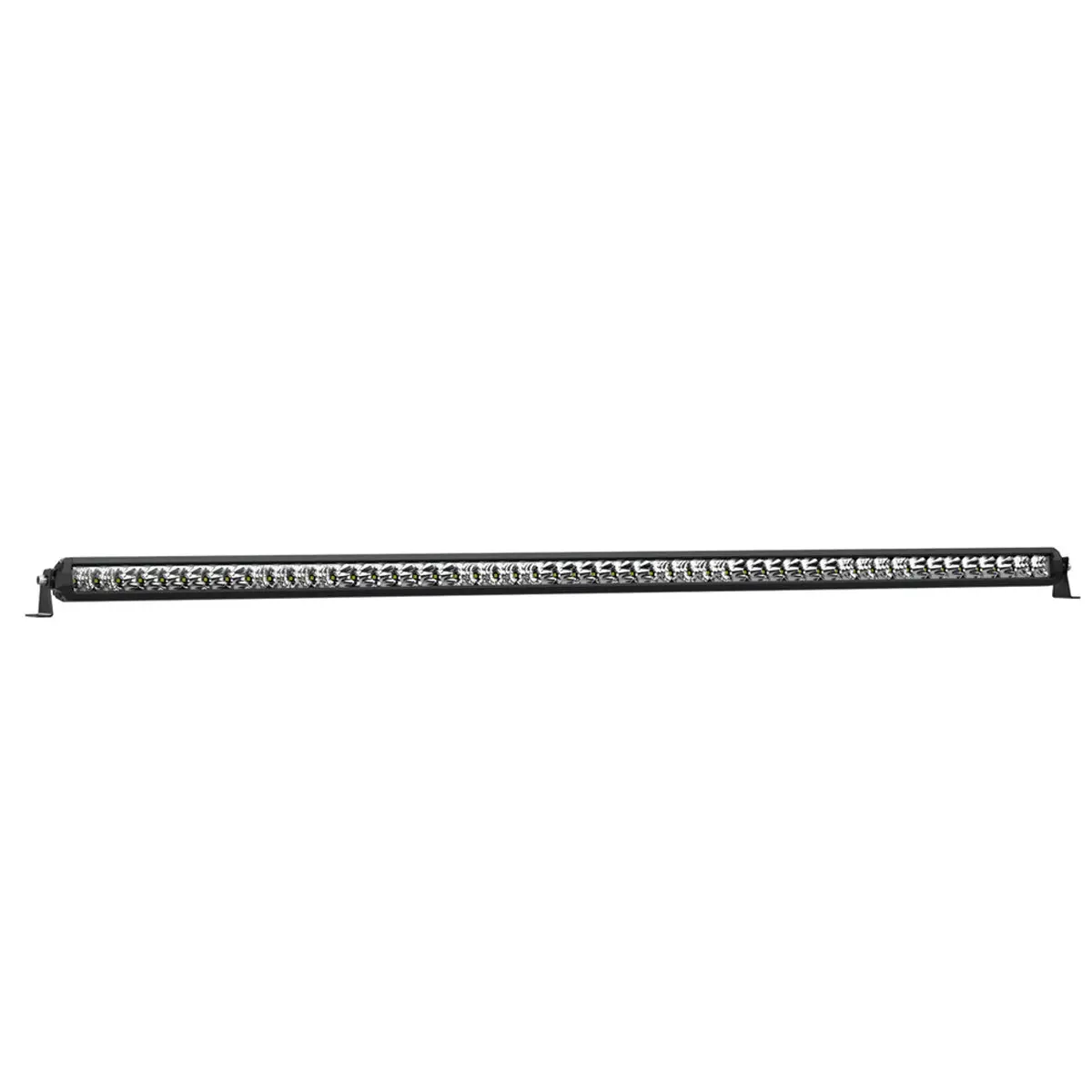

Offroad Animal 52″ Slim Profile LED Light Bar

Description

Weight: 5.00 KGS
Width: 140.00 (cm)
Height: 11.00 (cm)
Depth: 10.00 (cm)

Offroad Animal is pleased to present this powerful 52-inch single row LED light bar. Light-up the entire horizon with this awesome piece of gear. Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore® PolyVents for ultimate housing ventilation. Encased in high-grade aluminium and protected by impact-resistant Lexan® Polycarbonate lenses, their rugged construction will last for years to come.

 Features:

• Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
  IP68 for term long submersion and total dust ingress.
  IP69K for stream jet cleaning.
• Ventilation: Gore® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools – eliminating condensation & fogging.
• Housing: 6063 grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont® coating.
• Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
• Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
• Technology: Grade A Osram 5W LED chips & sealed DT connectors.

 Specifications:

• Input Power: 9-36V
• Beam Pattern: Flood & Spot Combination
• Beam Spread: 8° Spot & 20° Flood
• Power: 218W
• Current Draw: 16.5A @ 13.2V
• Raw Lumen: 23,800 lm
• Effective Lumen: 10,854 lm
• Beam @ 1 Lux: 625m
• LED Chips: Osram 5W
• Colour Temp: 6000-6500K
• Housing Material: 6063 Aluminium
• Housing Coating: DuPont®
• Lens Material: GE Lexan® Polycarbonate
• IP Rating: IP68 / IP69K
• Ventilation: Gore® PolyVent
• Weight: 3.36Kg
• Body Dimensions: (L)1320 x (H)46 x (W)49mm
• Lens Dimensions: 50″ (1270mm)
• Connector Type: DT Sealed
• Operating Temp: -40ºC – 145ºC
• Certification: CE, RoHS, RCM
• Color Ranger 6500K
• Pass CE, RoHS, UV, Vibration, Anti-interference, Salt, Fog, High &Low Temperature, Drop ball impact tests

What’s in the Box:

1x Light

1x Wiring harness

1x bolt kit

1x Pair Mounting Bracket Powder-coated Steel
