❄️ Jaguar S-Type Climate Control Panel Repair (2003–2005)

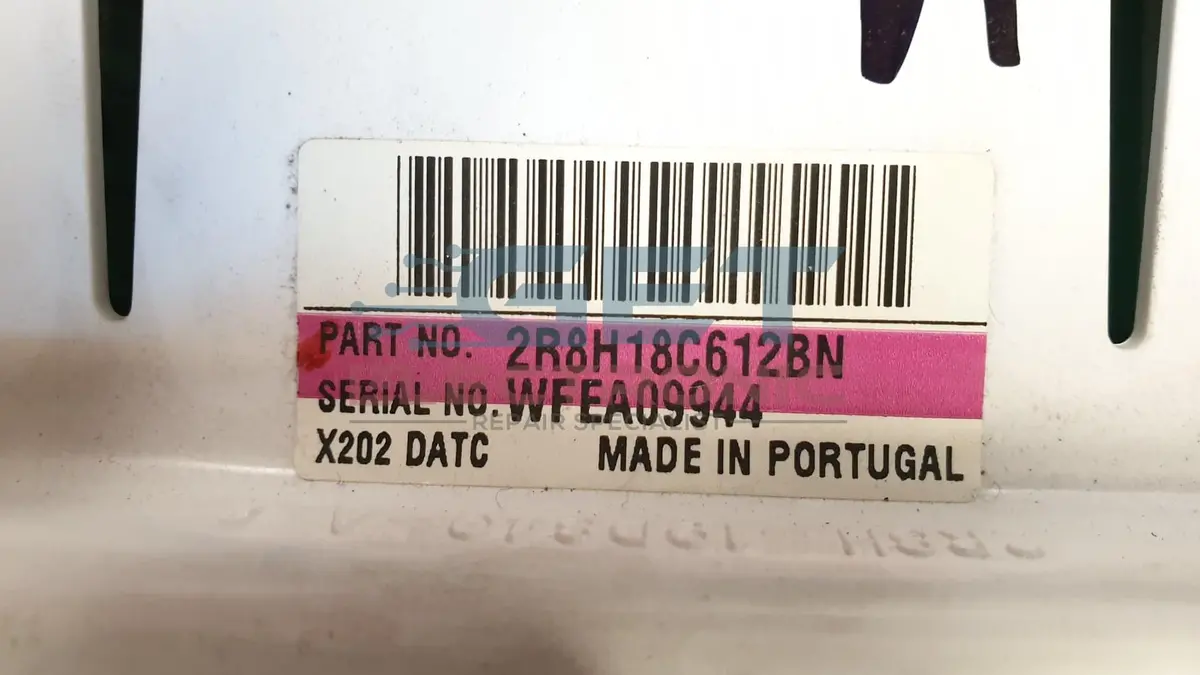

Part Number: 2R8H-18C612-BN | PCB Damage from Flap Motor Overload

This is a repair service for the climate control panel and control box used in 2003–2005 Jaguar S-Type models, commonly failing due to flap motor overcurrent, which causes PCB damage in both the user interface and the control module behind the dash.

---

Common Symptoms Repaired:

• No response from climate control panel

• Flap motors click, cycle endlessly, or stop moving

• Blower fan not functioning or intermittent

• A/C or heater settings not responding

• Panel appears dead or partially functional

---

Known Cause:
The air distribution flap motors can draw excessive current due to mechanical binding or age, damaging the climate control PCB circuitry — often burning tracks, shorting components, or disabling signal pathways.

---

What We Do:

• Replace damaged components and reconstruct burnt or lifted PCB tracks

• Check and repair relay circuits, motor drivers, and communication links

• Bench test with simulated HVAC loads for full function verification

---

Applies To:

• Jaguar S-Type (2003–2005)

• Climate system with part number: 2R8H-18C612-BN

• Dual-zone or single-zone automatic climate systems

Turnaround Time: 3–5 business days
Warranty: 12 months on all repaired components

💡 We don’t just patch the symptoms — we restore full HVAC control by repairing both modules professionally and reliably.
