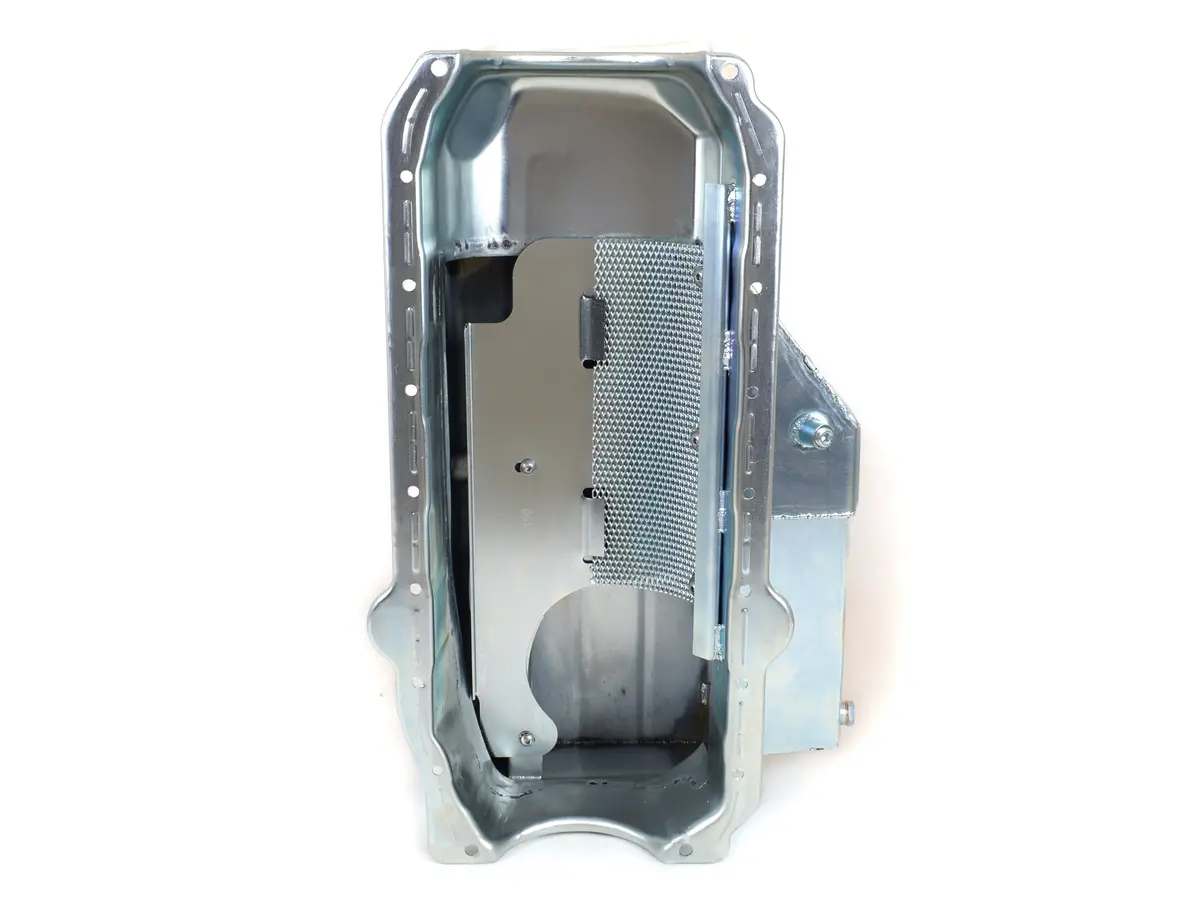

Canton Racing Deep-Draft Oil Pan – 6.5″ Depth, For Small-Block Chevy Open-Chassis Circle Track

Description

This SBC competition open chassis wet sump is for ?85 and earlier Small Block Chevys. It is designed for chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It provided maximum ground clearance at only 6.5 inches deep, but still provides an 8 quart system capacity with its ?L? sump design. Sump measures 11-1/2″ wide, 16″ long 6-1/2″ deep, and provides a 9 quart system capacity. Requires one of our pickups.

• 8 qt System Capacity
• Six Trap Door Baffles & Three Directional Oil Runners
• Crank Scraper
• Bolt in Slosh Baffle
• Built in Screen Windage Tray
• 1/2” NPT Temperature Bung
• Provison for our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• Brand Name: Canton
• GTIN: 00887753711267
• Baffled: Yes
• Capacity: 8 Quart System Capacity
• Crank Scraper Included: Yes
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Engine: For S.B. Chevy 1985 and earlier blocks
• Feature 1: Provides maximum ground clearance at only 6.5 inches deep
• Feature 2: L
• Feature 3: Baffled with 6 Trap Doors/3 Directional Runners
• Feature 4: Bolt On Slosh Baffle For Oil Control
• Feature 5: Removable Screen Windage Tray and Built in Crank Scraper
• Feature 6: Provision for Canton Pan Mounted Dipstick
• Feature 7: 1/2 NPT Temp Sensor Bung
• Feature 8: Magnetic Drain Plug
• Finish: Silver Plating
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: 16 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 20-030 – Pickup for Small Block Standard Volume Pumps M55 & M55A
• Recommended Accessory 2: 20-031 – Pickup for Small Block High Volume Pump M55HV
• Recommended Accessory 3: 20-032 – Pickup for Small Block Standard Volume M155 Pump with 3/4″ Inlet
• Recommended Accessory 4: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
• Recommended Accessory 5: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T Fitting
• Recommended Accessory 6: 88-100 ? SBC Pre ?85 Oil Pan Gasket
• Stoke: 3.875″
• Windage Tray Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Discontinued

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 16.25 x 9 inches
• Weight: 18.5 POUNDS
